IE Audi 2.0T TSI / TFSI EA888 Gen1/2 Performance ECU Tune - STAGE 1

SKU: IESOVT21
AVAILABILITY: AVAILABLE

$760.00 $no

WHICH TUNE IS RIGHT FOR YOU?

STAGE 1

262 horsepower on stock hardware

Unleash hidden power in 30 minutes or less

No hardware upgrades required

Supports 91 or 93 octanes

Rev limit raised to 7000 RPM

Road speed limiters removed

Easy upgrade to Stage 2 or K04 (only pay the difference)

All safety protocols remain for reliable engine life

Engineered for all climates and elevations

Compatible with IE Cold Air Intake

Compatible with IE FDS Intercooler

Compatible with IE Intake Manifold Upgrade

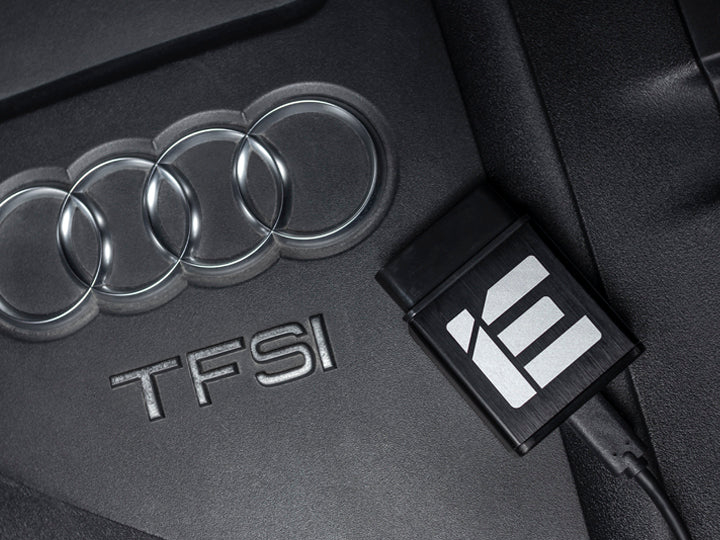

Requires IE POWERlink Flash Tool

Requires Windows 7+ powered device

ll available tune stages include various octanes at no extra cost.
Using the IE POWERlink cable you can switch between octanes as needed such as high octane files for race day and regular pump octane on your commute.

IE tunes are calibrated to perform with IE brand hardware, performance results may differ when installing alternative brand parts.

CONSUMER NOTICE: BY PURCHASING A MOTORSPORT/RACING PRODUCT ("PRODUCT"), YOU REPRESENT THAT YOU UNDERSTAND AND AGREE THAT: THE PRODUCT IS NOT DESIGNED TO MEET ANY APPLICABLE EMISSIONS STANDARDS, WHETHER IN THE USA OR OTHERWISE, THE PRODUCT IS NOT C.A.R.B. COMPLIANT, AND THAT THE PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA, USA NOR ANY OTHER JURISDICTION WHERE THE SALE OR USE IS PROHIBITED BY LAW. INTEGRATED ENGINEERING, LLC MAKES NO REPRESENTATIONS, WARRANTIES, OR CLAIMS THAT THIS PRODUCT COMPLIES WITH ANY APPLICABLE EMISSIONS LAWS AND EXPRESSLY DISCLAIMS ANY AND ALL SUCH REPRESENTATIONS, WARRANTIES, AND CLAIMS, WHETHER EXPRESS OR IMPLIED. BY PURCHASING THIS PRODUCT, YOU REPRESENT, WARRANT, AND AGREE THAT IT IS YOUR RESPONSIBILITY TO INFORM YOURSELF OF ANY LAWS OR REGULATIONS THAT MAY APPLY TO YOUR PURCHASE AND/OR USE OF THE PRODUCT.

Exhaust Crackle

Give your Audi turbocharged engine an aggressive sporty sound. This fun feature is guaranteed to put a smile on your face when you rev, decelerate, or let off the throttle for gear changes. This exhaust crackle is completely safe and entirely addicting. Optional feature included with stage 2 and K04 tunes only.

Stage 1 Manifold

This free option is included with a Stage 1 Tune purchase and is for owners who have installed an IE Performance Intake Manifold (Sold Separately). IE Stage 1 Intake Manifold software fine-tunes the ECU calibration to match the manifold plenum and runner flow characteristics along with special tuning for the removed runner flaps. Even though tuning now matches higher flow characteristics of the intake manifold, performance numbers are still limited by the factory downpipe. Because of this, Stage 1 IM combination is only recommended for users who are planning on Stage 2 IM in the future, are trying to get rid of constantly failing runner flaps or cracking plastic manifolds, and building for improved engine bay looks.

MORE POWER FOR YOUR AUDI 2.0T TSI

IE FDS Intercooler For Audi B8/B8.5 2.0T

IE Cold Air Intake For Audi B8/B8.5 2.0T

IE Downpipe For Audi B8/B8.5 2.0T

IE Catch Can Kit For for Audi B8/B8.5 2.0T

VEHICLE FITMENT GUIDE

MAKE	MODEL	YEAR	ENGINE
Audi	A4	2009-2016 (B8/B8.5)	2.0T TSI Valvetronic
Audi	A5	2009-2016 (B8/B8.5)	2.0T TSI Valvetronic
Audi	Allroad	2009-2016 (B8/B8.5)	2.0T TSI Valvetronic
Audi	A6	2012-2017 (C7)	2.0T TSI Valvetronic
Audi	Q5	2009-2017 (8R)	2.0T TSI Valvetronic

IMPORTANT NOTES

REST OF WORLD (ROW) SUPPORT
IE tunes are designed and written on North American (NA) vehicles. Although IE does offer ROW purchases of software files, some ECUs available only in certain countries or markets may not be supported in our current file library. If you have access to read your ECU code, please contact us to verify compatibility before purchase.

INCREASED RPM
IE 2.0T TSI Tunes continue to make power beyond the factory rev limiter, to take advantage of the larger power band, the rev limits have been raised. All tunes include a new RPM range of 7000RPM. On automatic transmission equipped cars, calibration will shift before these rev limiters.

Once a tune purchase is applied to your vehicle's ECU, the tune is permanently registered to the vehicle and non-transferable to other vehicles. Tune can be transferred to a second party in the event of vehicle transfer of ownership only.

Stage 1 - 93 AKI / 98 RON Octane

3000400050006000050100150200250300ENGINE RPMHORSEPOWER & FT-LB TORQUE (CRANK)

RPM	Stock - Torque	Stock - Horsepower	Stage 1 - 93 AKI / 98 RON Octane - Torque	Stage 1 - 93 AKI / 98 RON Octane - Horsepower
2,550	278	134	296	145
2,650	280	141	308	157
2,750	273	143	308	163
2,850	270	146	308	168
2,950	265	149	307	174
3,050	265	154	306	178
3,150	259	155	296	178
3,250	249	154	285	177
3,350	255	162	293	187
3,450	269	176	313	206
3,550	271	183	328	223
3,650	269	186	323	226
3,750	269	192	324	233
3,850	269	197	325	240
3,950	267	201	325	245
4,050	264	204	316	245
4,150	252	199	302	240
4,250	250	203	303	247
4,350	251	208	303	252
4,450	244	207	302	257
4,550	236	205	287	250
4,650	234	207	280	249
4,750	230	208	279	252
4,850	227	209	273	254
4,950	222	209	267	252
5,050	216	208	263	252
5,150	209	205	262	257
5,250	201	201	262	259
5,350	194	198	256	261
5,450	189	196	249	258
5,550	184	194	245	259
5,650	179	193	237	255
5,750	176	193	228	249
5,850	172	192	221	245
5,950	169	192	215	244
6,050	168	193	211	242
6,150	164	192	204	238
6,250	160	190	197	234
6,350	155	187	191	229
6,450	149	183	187	227
6,550	145	180	180	225
6,650			176	221
6,750			171	219
6,850			165	215

IE HORSEPOWER
262 BHP

IE TORQUE
328 BTQ

STOCK HORSEPOWER
211 BHP

STOCK TORQUE
280 BTQ

010203040506070ENGINE RPMGAIN OVER STOCK

RPM	Torque	Horsepower
2,550	18	11
2,650	28	16
2,750	35	20
2,850	38	22
2,950	42	25
3,050	41	24
3,150	37	23
3,250	36	23
3,350	38	25
3,450	44	30
3,550	57	40
3,650	54	40
3,750	55	41
3,850	56	43
3,950	58	44
4,050	52	41
4,150	50	41
4,250	53	44
4,350	52	44
4,450	58	50
4,550	51	45
4,650	46	42
4,750	49	44
4,850	46	45
4,950	45	43
5,050	47	44
5,150	53	52
5,250	61	58
5,350	62	63
5,450	60	62
5,550	61	65
5,650	58	62
5,750	52	56
5,850	49	53
5,950	46	52
6,050	43	49
6,150	40	46
6,250	37	44
6,350	36	42
6,450	38	44
6,550	35	45

IE HORSEPOWER
65 BHP

<span "="">IE TORQUE
62 BTQ
