IE Audi 2.5T 5 Cylinder Turbo Performance ECU Tune | Fits 8V RS3 & 8S TTRS - STAGE 2

  • SKU: IESOVO22
  • AVAILABILITY: AVAILABLE

$1350.00 $no



TRUE PERFORMANCE MACHINE





Your Audi RS3 or TTRS has a massive amount of power hiding within the 2.5L inline 5 cylinder turbo engine. Unlock supercar levels of performance in a matter of minutes from your own driveway with your choice of ECU Tune stages to match available performance hardware upgrades.



Gain up to 119hp over stock without touching a wrench

Add bolt-on upgrades for a mind blowing 577hp

RELIABILITY TESTING

IE's fully proven software brings track-ready ECU programming to your 5 cylinder engine while retaining factory comfort and reliability. IE's own tuning technology is used to completely reverse-engineer the factory ECU mapping, allowing our software engineers access to match all safety protocols and sensors for the new performance calibration. Every tune parameter undergoes months of testing on our in-house dyno systems that utilize the world's only Sea Level Generator developed specifically to verify tune operations in any condition. Confidently drive from LA to Pikes Peak with power that will keep you smiling every mile!




LEADING TUNE FEATURES

  • Horsepower & torque gains maximized, especially in the mid-range
  • Stock boost control optimized for a smoother driving experience
  • Rev limiter increased to 7200 RPM in manual mode or with DSG flash
  • Exhaust flaps programmed to open under boost
  • Launch control boost pressure increased for faster launches
  • Increased rev limiters (transmission stock shift points remain)
  • Road speed limiters removed
  • Boost safely reduces as engine temps increase for engine life
  • Annoying cold start rattle eliminated
  • Engineered for all climates and elevations




E85 ETHANOL

E85 fuel unlocks the most performance potential from our stage 2 tune and even the ability to run 10s in a quarter mile! Ethanol contains tons of oxygen, burns cooler, and has a high resistance to knock. This provides more horsepower and torque than running conventional gasoline and is more readily available (in most states) and less expensive than race gas. E85 is an optional fuel map included with Stage 1 & Stage 2 purchase.



1000CC INJECTORS

E85 requires much more fuel and can stretch the limitations of the factory 2.5T fuel system. IE offers an optional 1000cc injector file included with your tune that allows the installation of larger port injectors. When added to the direct port injectors, the combination allows massive headroom to safely run E85 worry free. Adding larger port injectors is more cost efficient and reliable than an upgraded HPFP and will run on both pump gas and ethanol with a regular idle and stock-like drivability. For best results we recommend the Sharp-Motorsport injector kit.



E60-E85 ADAPTABLE

Although full E85 is recommended for the highest power output, safeguards are included within the E85 ECU calibration to adjust for ethanol as low as E60. This flexibility gives you the confidence to safely fill up at the pump which can commonly test lower than advertised E85.

POWER RESULTS

North American Region (NAR) = AKI / Rest Of World (ROW) = RON

STAGE / FUEL HORSEPOWER TORQUE

Stock Audi advertised numbers

394 HP

354 FT-LBS

Stock IE dyno numbers

398 HP

384 FT-LBS

Stage 1 91 AKI / 95 RON

427 HP

488 FT-LBS

Stage 1 93 AKI / 98 RON

440 HP

500 FT-LBS

Stage 1 100 AKI / 104 RON

466 HP

513 FT-LBS

Stage 1 104 AKI / 108 RON

517 HP

527 FT-LBS

Stage 2 91 AKI / 95 RON

505 HP

537 FT-LBS

Stage 2 93 AKI / 98 RON

510 HP

543 FT-LBS

Stage 2 100 AKI / 104 RON

522 HP

557 FT-LBS

Stage 2 104 AKI / 108 RON

552 HP

566 FT-LBS

Stage 2 E85

577 HP

592 FT-LBS

Dyno numbers are for reference against stock numbers only. Personal dyno results will vary depending on fuel quality, local conditions, dyno brand, and correction factors.





FITMENT GUIDE

MAKE MODEL YEAR GENERATION

AUDI

RS3

2017-2020

8V

AUDI

TTRS

2016-2020

8S



REQUIRED HARDWARE

PART UPGRADE COMPATIBLE REQUIREMENT

AIR INTAKE



Highly Recommended

TURBO INLET



Highly Recommended

INTERCOOLER



Required

DOWNPIPE



Required

CATBACK EXHAUST



Fully Compatible With All Stages

1000CC INJECTOR UPGRADE



Highly Recommended For E85

CONSUMER NOTICE: BY PURCHASING A MOTORSPORT/RACING PRODUCT ("PRODUCT"), YOU REPRESENT THAT YOU UNDERSTAND AND AGREE THAT: THE PRODUCT IS NOT DESIGNED TO MEET ANY APPLICABLE EMISSIONS STANDARDS, WHETHER IN THE USA OR OTHERWISE, THE PRODUCT IS NOT C.A.R.B. COMPLIANT, AND THAT THE PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA, USA NOR ANY OTHER JURISDICTION WHERE THE SALE OR USE IS PROHIBITED BY LAW. INTEGRATED ENGINEERING, LLC MAKES NO REPRESENTATIONS, WARRANTIES, OR CLAIMS THAT THIS PRODUCT COMPLIES WITH ANY APPLICABLE EMISSIONS LAWS AND EXPRESSLY DISCLAIMS ANY AND ALL SUCH REPRESENTATIONS, WARRANTIES, AND CLAIMS, WHETHER EXPRESS OR IMPLIED. BY PURCHASING THIS PRODUCT, YOU REPRESENT, WARRANT, AND AGREE THAT IT IS YOUR RESPONSIBILITY TO INFORM YOURSELF OF ANY LAWS OR REGULATIONS THAT MAY APPLY TO YOUR PURCHASE AND/OR USE OF THE PRODUCT.



ADD POWER IN MINUTES

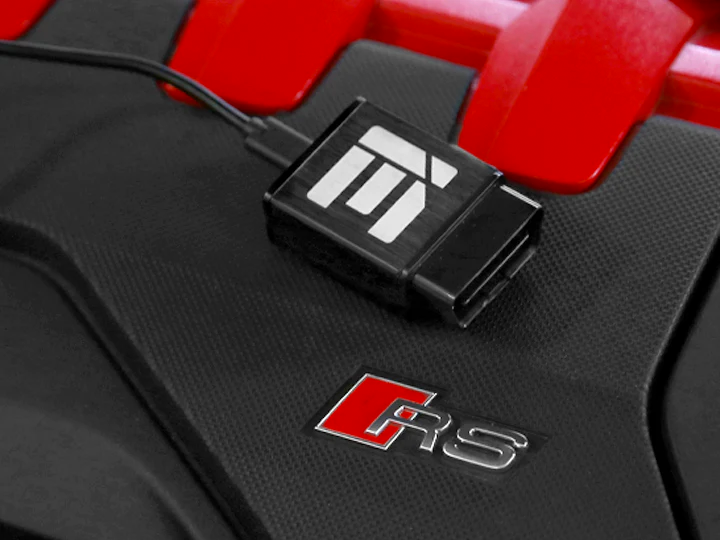

IE's POWERlink Cable and Flash Wizard software gives you the freedom to quickly flash your new IE ECU Tune. Simply plug your POWERlink into the vehicle's OBD-2 port and follow the on-screen directions, it's that easy!

DIRECT PORT

OCTANE SWITCHING

UPGRADE STAGES

TOGGLE FEATURES

CODE READER

DATA LOGGER

DYNO CHARTS
